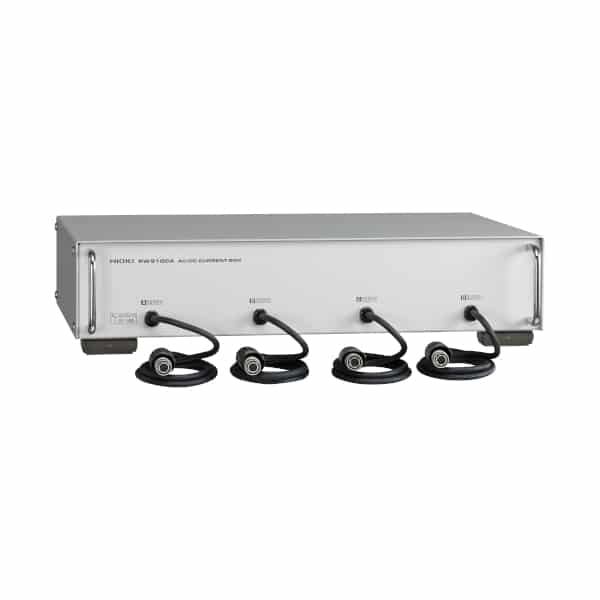

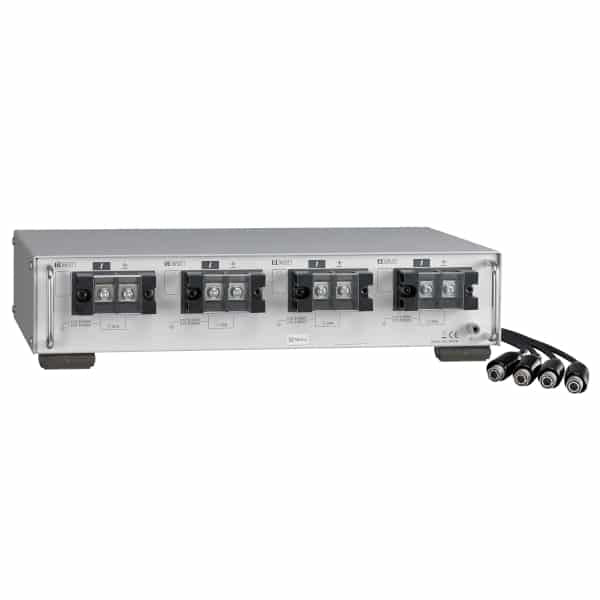

Hioki PW9100A-4 AC/DC Current Box

Hioki PW9100A-4 AC/DC Current Box

Price on request

  • The Hioki PW9100A-4 is a AC/DC Current box,
  • Direct Current measurement option for PW6001/ PW3390,
  • Wide-band DC to 3.5MHz
  • 50A AC/DC rated input
  • 0.04V/A output
  • 4 channels
  • automoatic sensor detection
SKU: PW9100A-4 Categories: , Tag:

Hioki PW9100A-4 AC/DC Current Box

The Hioki PW9100A-4 is a Direct Current Measurement Element that Delivers a Wide Bandwidth and Superior Accuracy

Hioki benchtop power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The Hioki PW9100A-4 is a direct AC/DC current measurement option for the Hioki Power Analyzers that delivers wide bandwidth and high accuracy testing across 4 channels of input. The option is ideal for applications requiring direct input connections when testing the power conversion efficiency of motors, primary and secondary side of inverters, hybrid and electric vehicles, and renewable energy equipment.

Basic specifications

Accuracy guaranteed: 1 year
Measurement line type Isolated input, DCCT input
Rated primary current 50 A AC/DC
Number of input channels PW9100A-4: 4 channels
Maximum input current 60 A, within derating. However, up to ±200 A peak is allowable if within 20 ms (design value)
Amplitude and Phase accuracy DC (±0.02 % rdg. ±0.007 % f.s.)
45 Hz < f ≤ 65 Hz (±0.02 % rdg. ±0.005 % f.s., Phase: ±0.1 deg.)
Accuracy is defined to 1 MHz
Output voltage 2 V/50 A

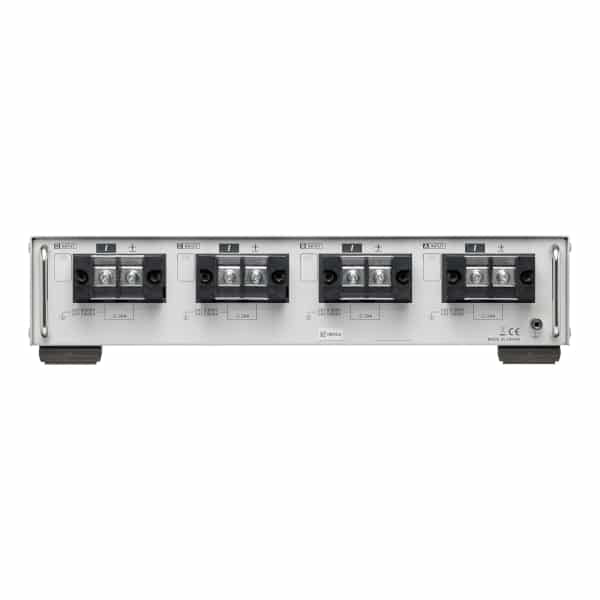

Measurement terminals Terminal block (with safety cover), M6 screws
Input resistance 1.5 mΩ or less (50 Hz/60 Hz)
Input capacitance Between measurement terminals and case (secondary side), 40 pF or less, defined at 100 kHz
Operating temperature and humidity Temperature: 0°C to 40°C (32°F to 104°F), Humidity: 80% RH or less (no condensation)
Power supply Power supply from Power Analyzers
Dimensions and mass 430 mm (16.93 in) W × 88 mm (3.46 in) H × 260 mm (10.24 in) D, Cable length: 0.8 m (2.62 ft)
PW9100A-3: 3.7 kg (130.5 oz), PW9100A-4: 4.3 kg (151.7 oz)
Included accessories Instruction Manual ×1


For more information: Hioki

Hioki PW9100A-4 AC/DC Current Box

Hioki PW8001/PW9100 Datasheet

Hioki PW9100A-4 AC/DC Current Box

Model No. (Order Code)

PW9100A-3 3 ch
PW9100A-4 4 ch

Additional information




Power Analyzer
